UV Spectrometer

UV Spectrometer
UV Spectrometer
Product Code : 14
Product Description

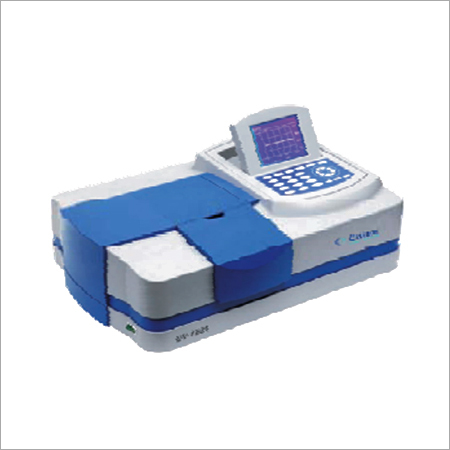

UV Spectrometer

With our rich industry experience, we are engaged in offering UV Spectrometer, which is manufactured from superior grade raw materials at par with the universal standards. The offered spectrometer is highly valued for its compact design, digital display, functional accuracy, high performance and longer life. In order to ensure quality, this UV Spectrometer is rigorously tested on various predefined parameters. The offered spectrometer is widely used in analytical chemistry for the quantitative determination of different analytes.



Model

UV-1601

UV-2601

Wavelength

190 - 1100nm

190 - 1100nm

Spectral Bandwidth (nm)

2nm(5,4,1optional)

2nm (5,4,1, 0.5, Optional)

Wavelength Accuracy

+ 0.3nm

Wavelength Reproducibility

<0.15nm

Optical System

Split beam ratio monitoring

Double beam

Photometric Accuracy

± 0.3%T (0~100%T), ± 0.002A (0~0.5A), ± 0.004A (0.5A~1A)

Photometric Reproducibility

<0.2% T

Photometric Range

-0.3-3.5A

Stray Light

<0.1%T (Nal, 220nm, NaNO2340nm)

Baseline Flatness

± 0.002A

Stability

<0.001A/30 min. (at 500nm, after warming up)

Light Source

Tungsten Halogen Deuterium Lamp

Light Source Switching

Auto Switch selectable from 3-5nm to 370nm
